Mesure du diamètre - 2 axes

Ø5 -2000µm

Illustrative image of the category inline 2 axis diameter measurements of wires, cables and tubes.

This is the main image of Cersa MCI's inline dual-axis measurement product, a measuring instrument for wires, cables and tubes.

Inline 2 axis wire diameter measurements : what's it for?

The LDS can be used inline with this dual-axis device version to continuously monitor the wire diameter during production.Instead of a single-axis system, this 2 diameter @90° version provides a better coverage of the wire. A device that is easy to implement on the line and that, with its integrated display and digital output, quickly informs the user of any deviation from the set tolerances.

The LDS has several inputs-outputs (analog and digital) to communicate with a PC or PLC.

‍

Applications:

- Drawing process
- Periodic die control
- Quality control (incoming)

‍

Type de fils :

- Steel, copper, stainless steel wire
- Gold, silver wire
- Carbon fiber, saw wire
- Any precious wire!

Documentation commerciale

Instruments composant cette solution

This is the main image of Cersa MCI's LDS-2-S product, a measuring instrument for wires, cables and tubes.

LDS-2-S : dual axis measurement

Dual axis version

To measure diameters of fine wires, with high accuracy. It's measurement principle is based on laser diffraction. Position and vibration independency. All static components, no moving parts. No averaging required. It can be used for in-line measurement for continuous diameter monitoring.

Documentation technique

Our software solution for Inline 2 axis diameter measurements

Logiciel CIM PROD

‍

Our advanced CIM PROD PC software is a complete production quality management tool for technicians. It comes with our instruments to perform their parameter settings, to clearly display production measurements and the detected defects, and to generate real-time parameters and record all the measurements and events in a data base.The PROD version has been developed for IN-LINE wire & cable measurements. Adjustment of tolerances, and a triggering threshold are specific features for the production environment.

‍

découvrir

Nos accessoires dédiés

SWB-2 : Standard Wire Box

4 fils étalons dans une boîte pour couvrir la plage de diamètres de chaque LDS. Le SWB permet aux clients de vérifier périodiquement la stabilité de leurs instruments (procédure qualité).

Documentation technique

Articles related to Inline 2 axis diameter measurements

Qu'est-ce qu'un micromètre laser ?

DÉCOUVRIR

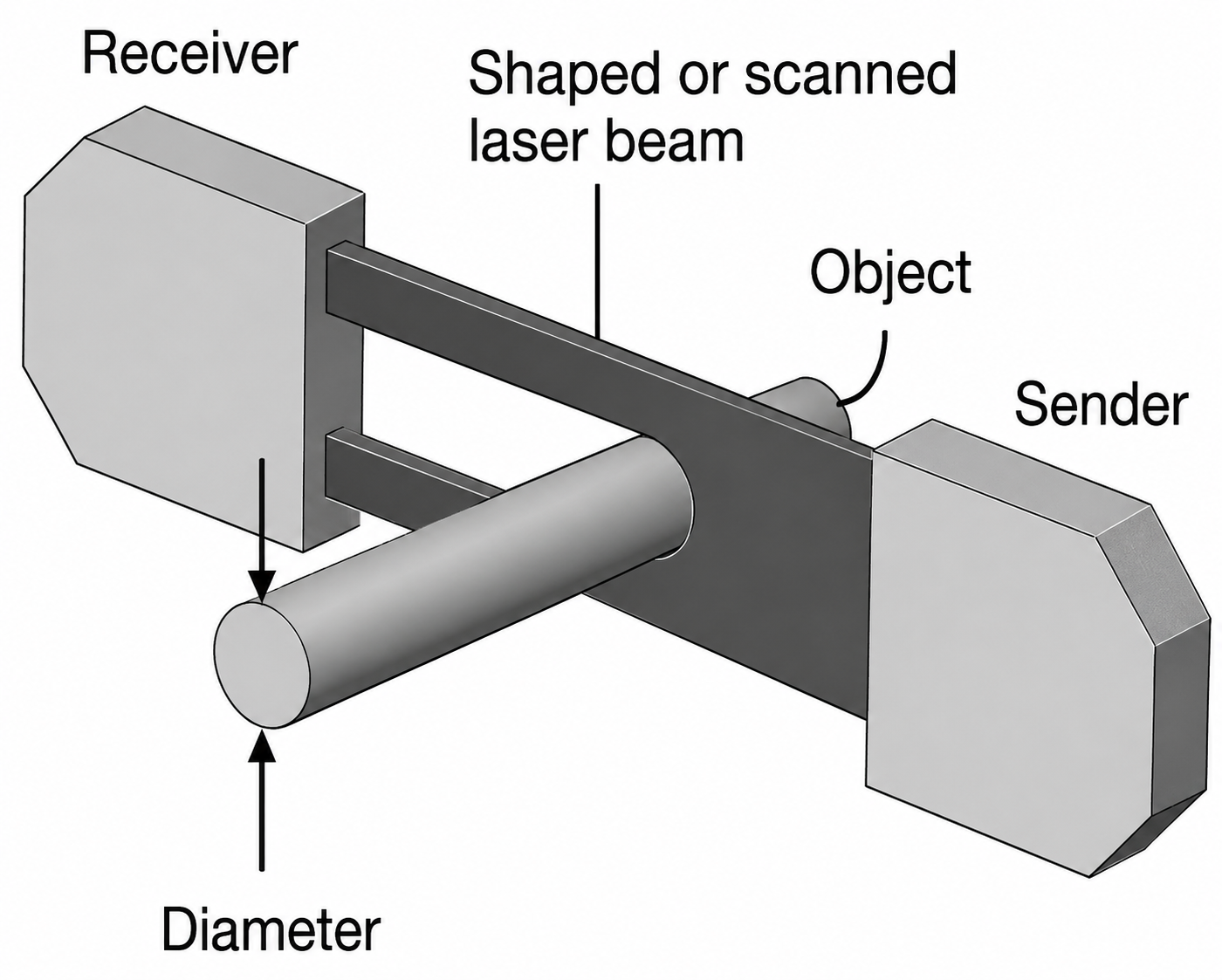

Un micromètre laser est un outil généralement utilisé pour l'inspection et la mesure sans contact des propriétés physiques telles que les dimensions, la forme et l'uniformité d'un objet.
